Arm harness 1600

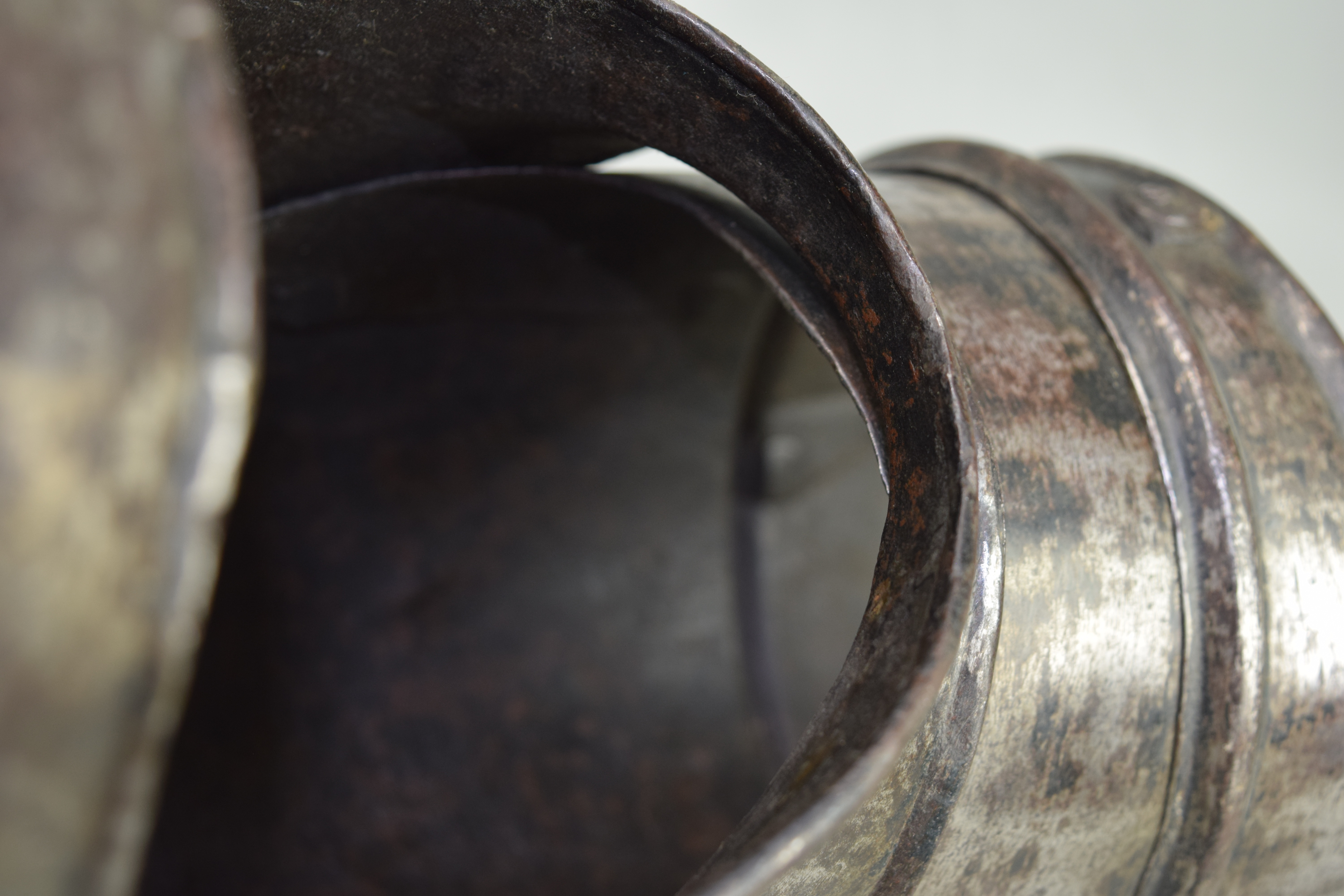

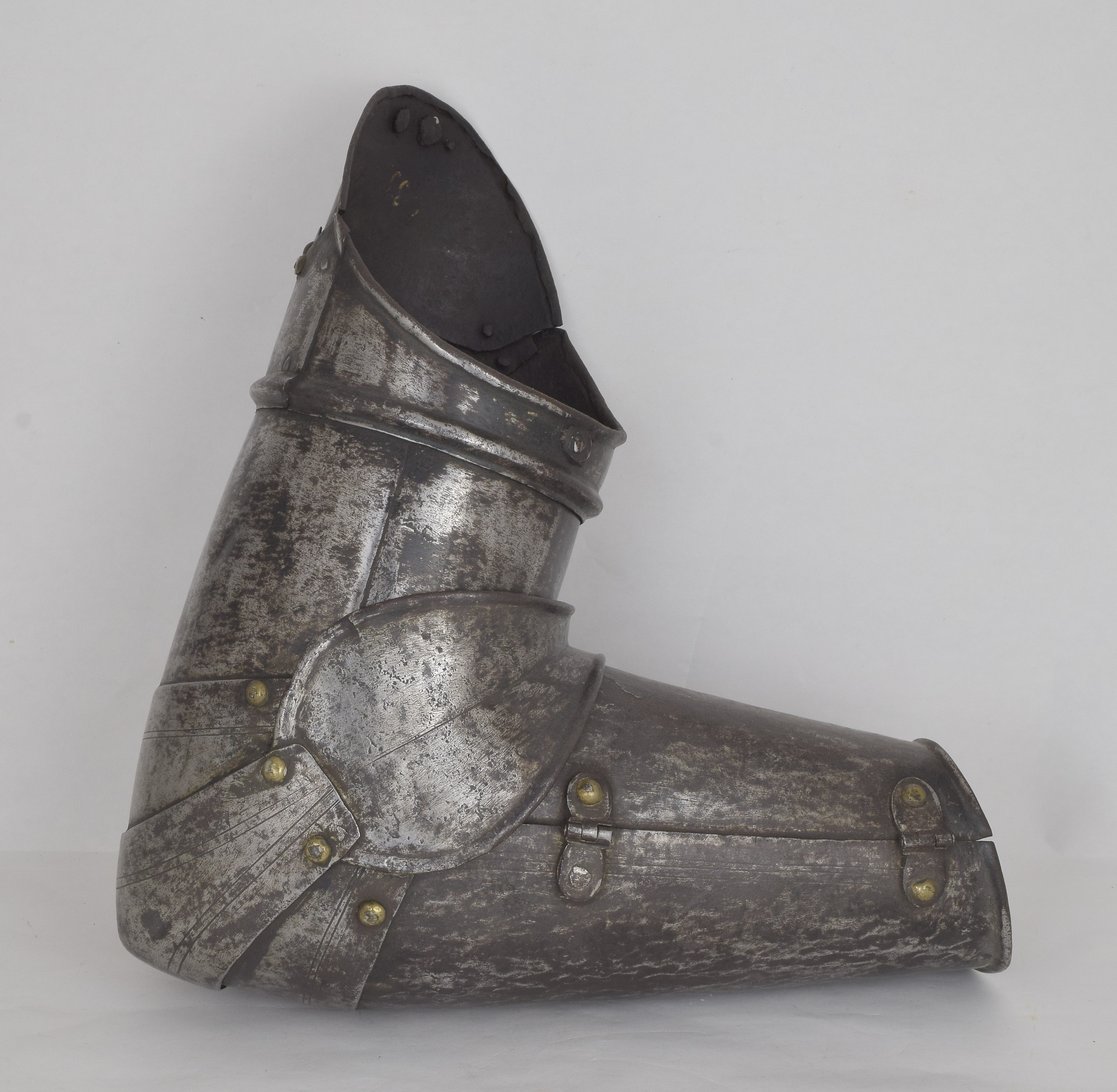

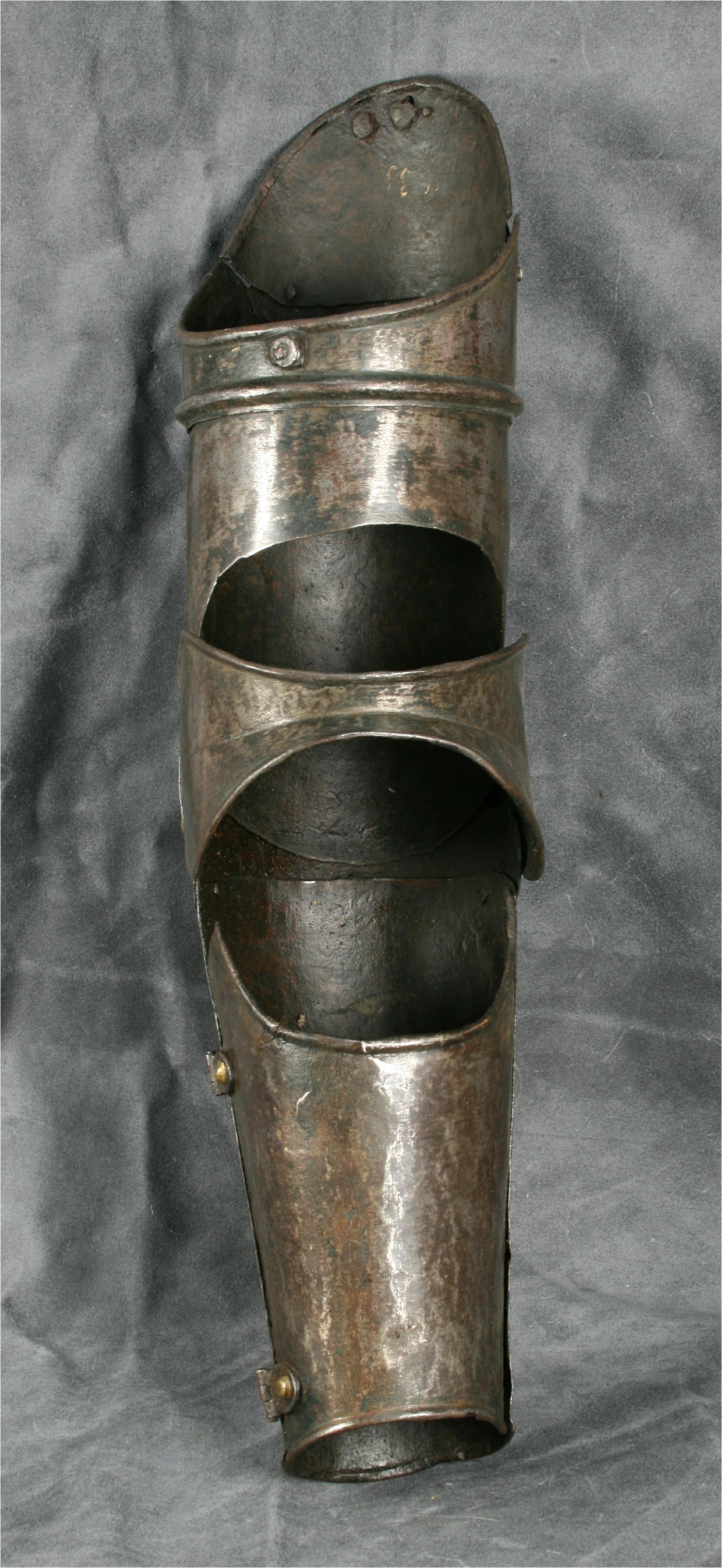

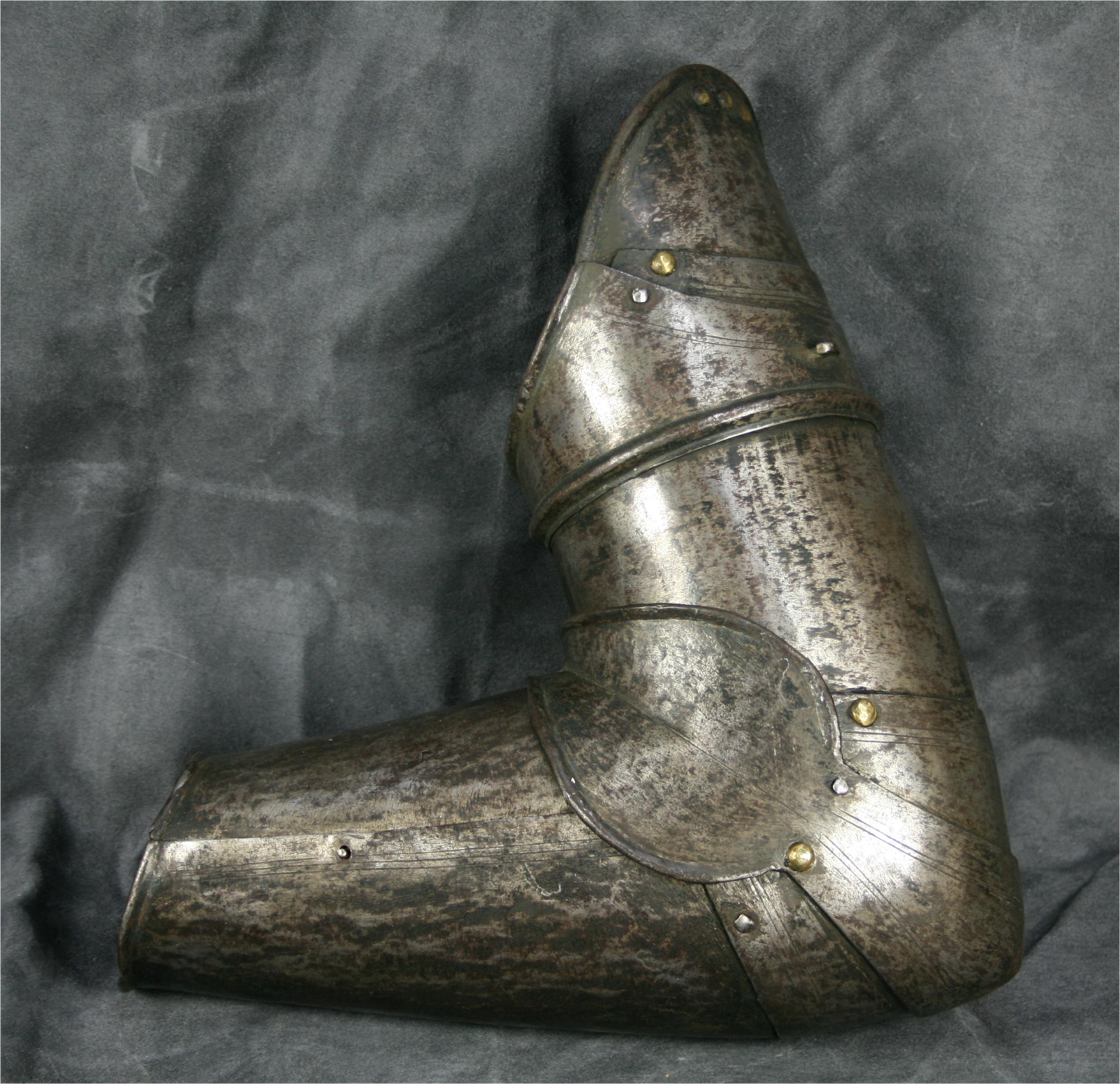

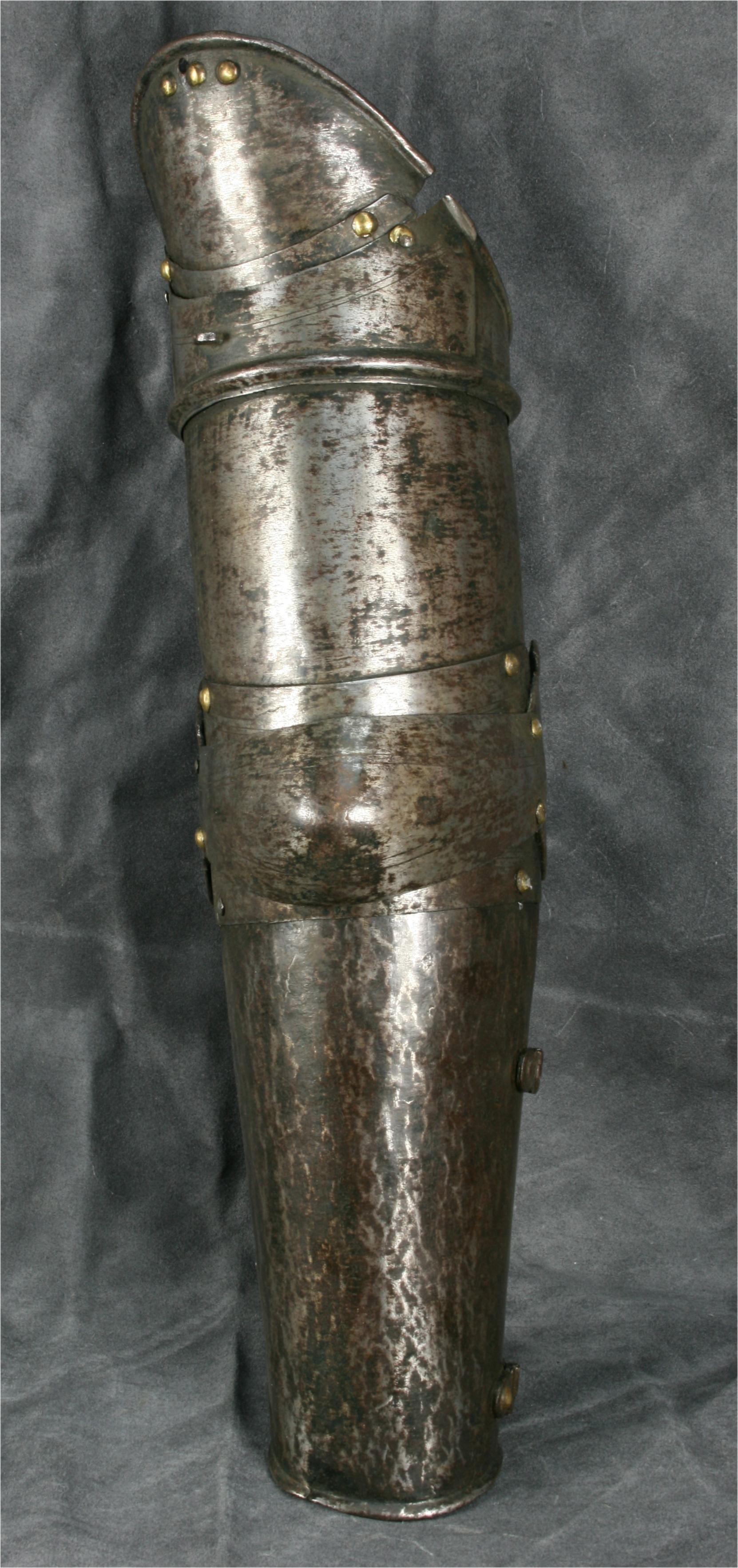

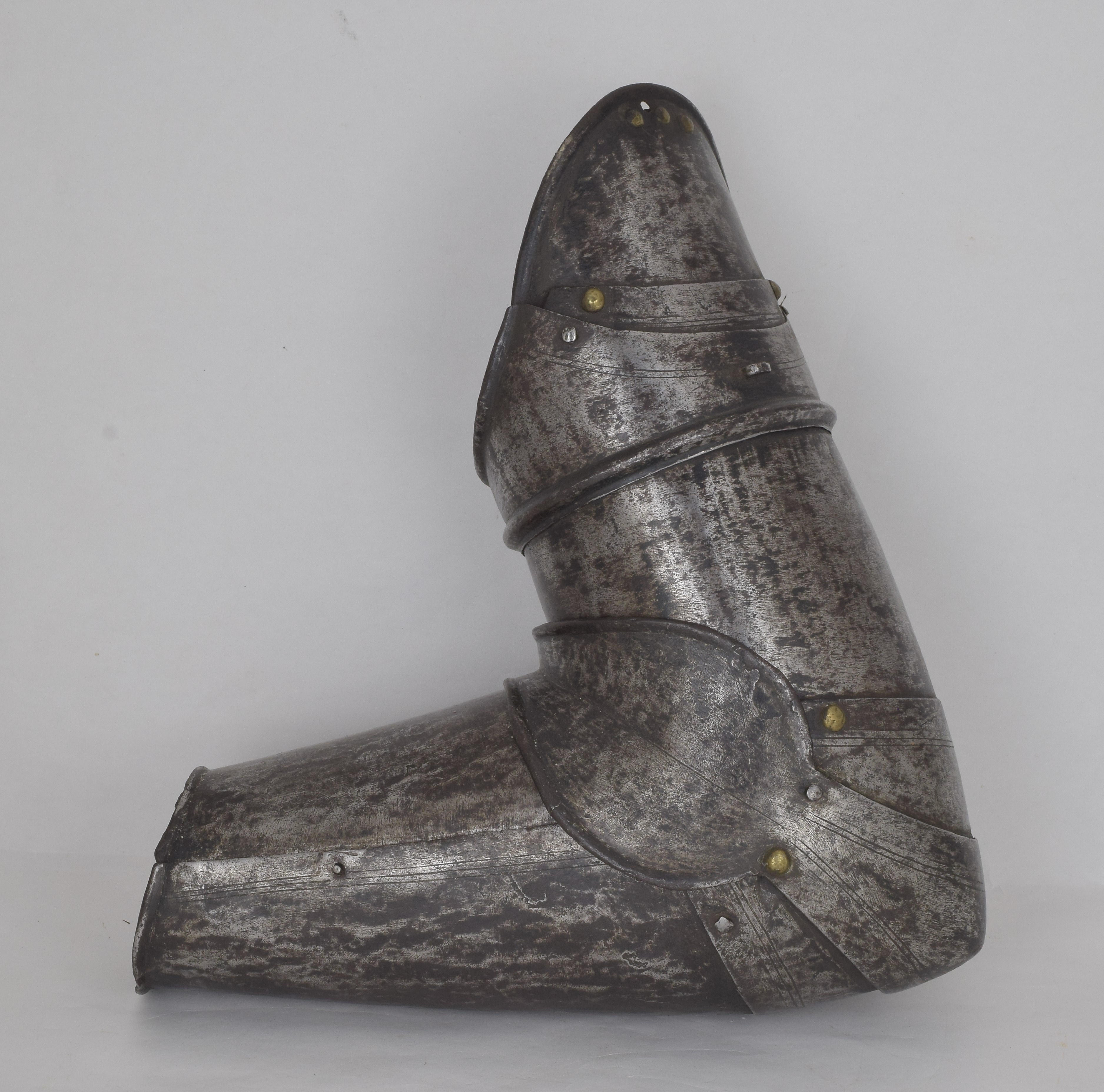

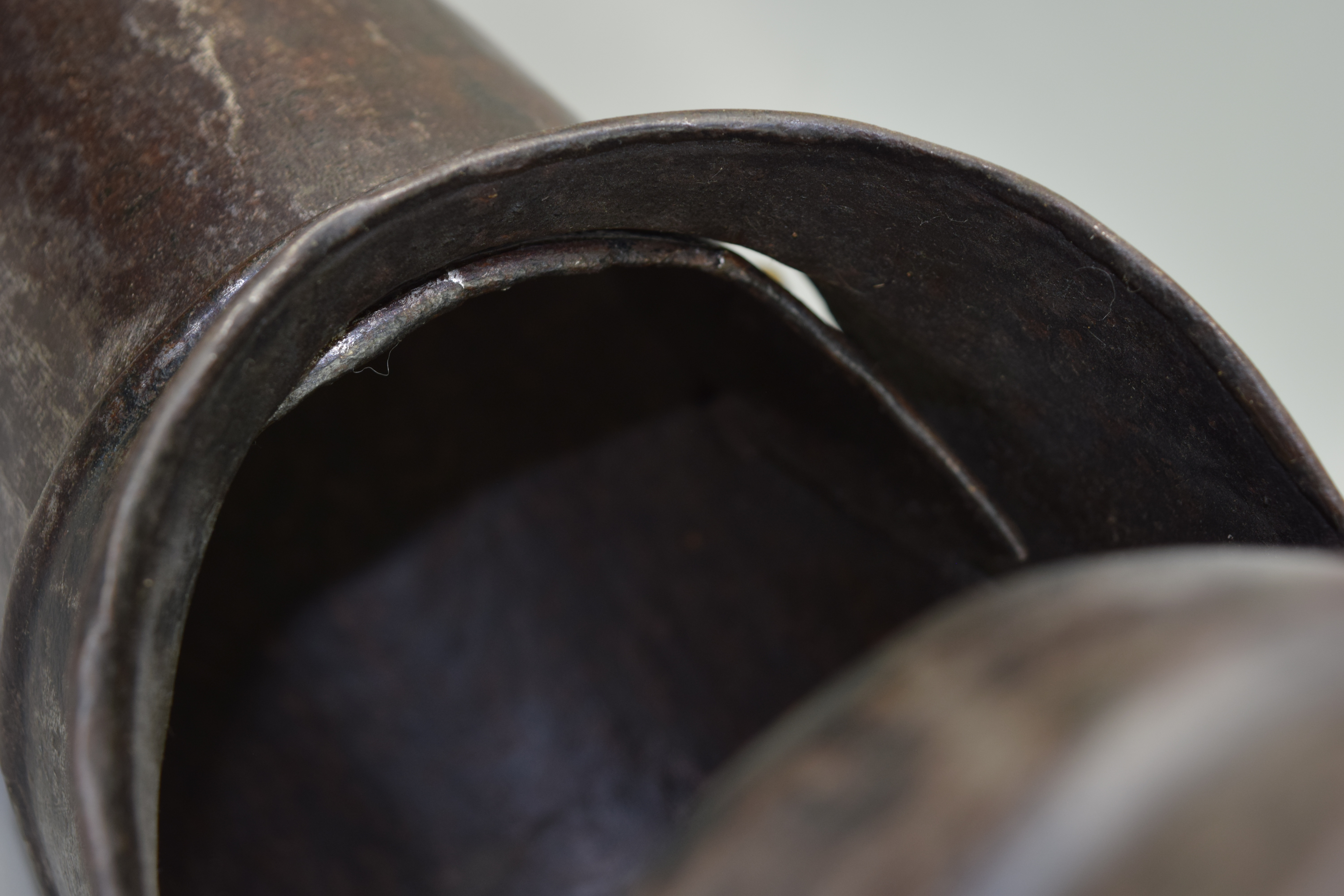

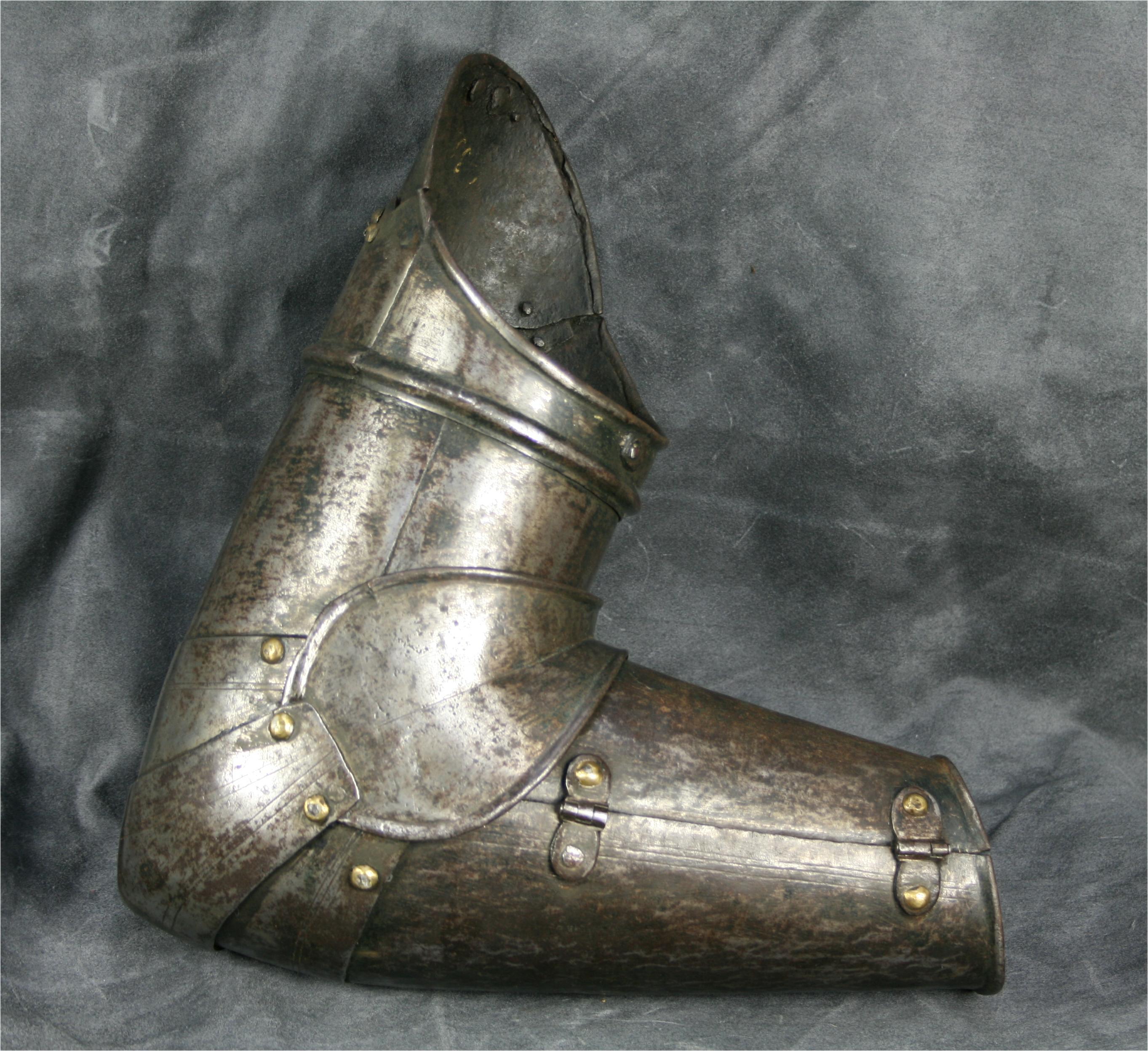

Left arm formed of a tubular upper cannon fitted with a turner of 3 lames, the upper lame retains 3 rivets which secured a leather tab to lace the arm to the sleeve. The upper and lower are secured by a raised ridge in the upper that is engaged by a flare in the lower plate. The cop of bracelet form joined at the back with a single lame above and below. The vambrace formed of an inner and outer plate secured by two external hinges on the inside and a pin on the outside. The main edges with inward turns. The surface is rough from the hammer with remains of oxide finish. There is a pin on the outside of the main plate of the turner to secure the arm to the pauldron and a rivet on the inside securing a piece of leather that would originally have been a loop to secure the pauldron strap. The main edges are decorated with incised lines. Many of the rivets retain dapped brass caps. Ex. Royal House of Hanover.
Weight 3 pounnds 5.2 ounces (1,510 g).
