Italian Arm harness 1560

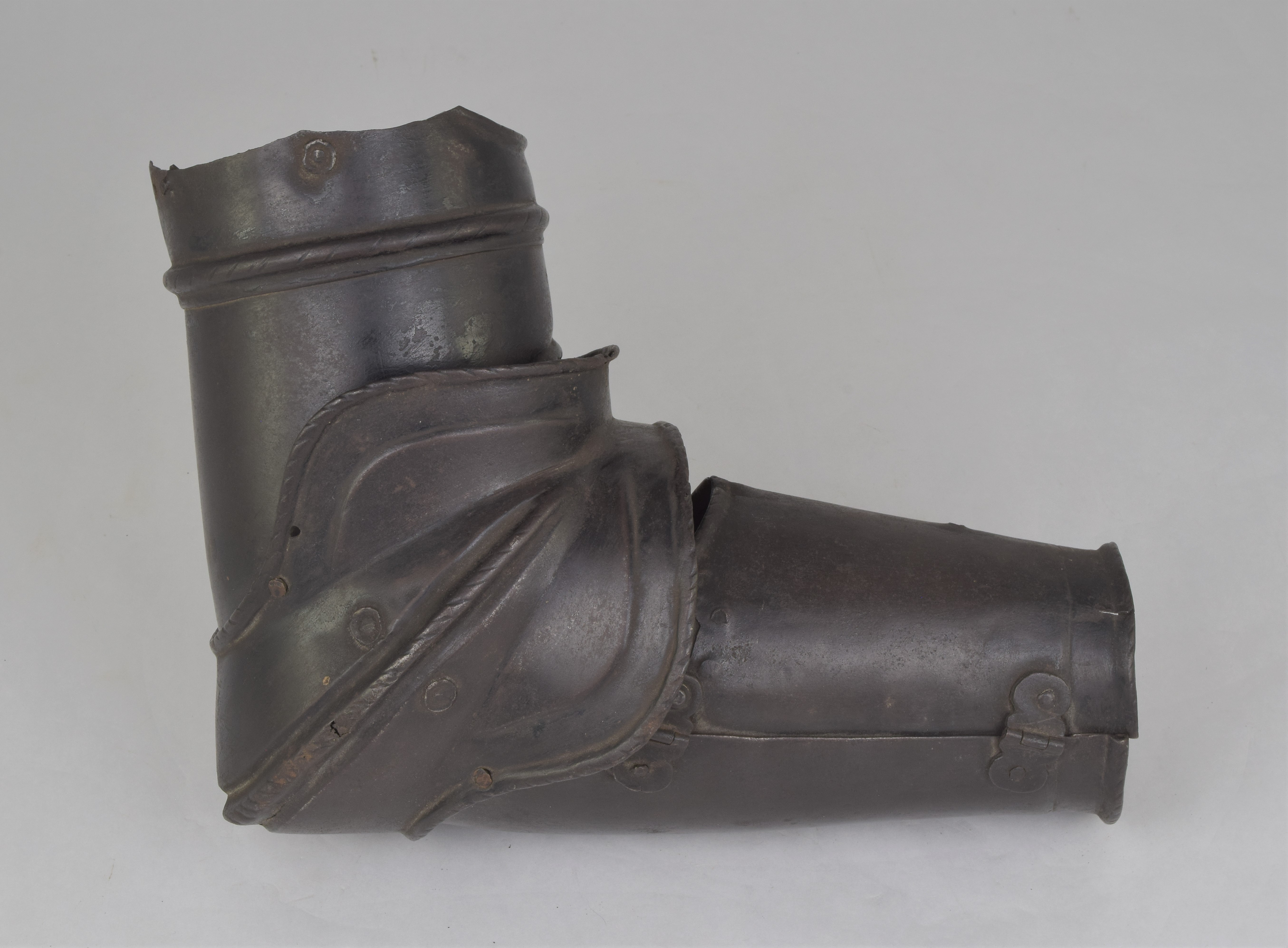

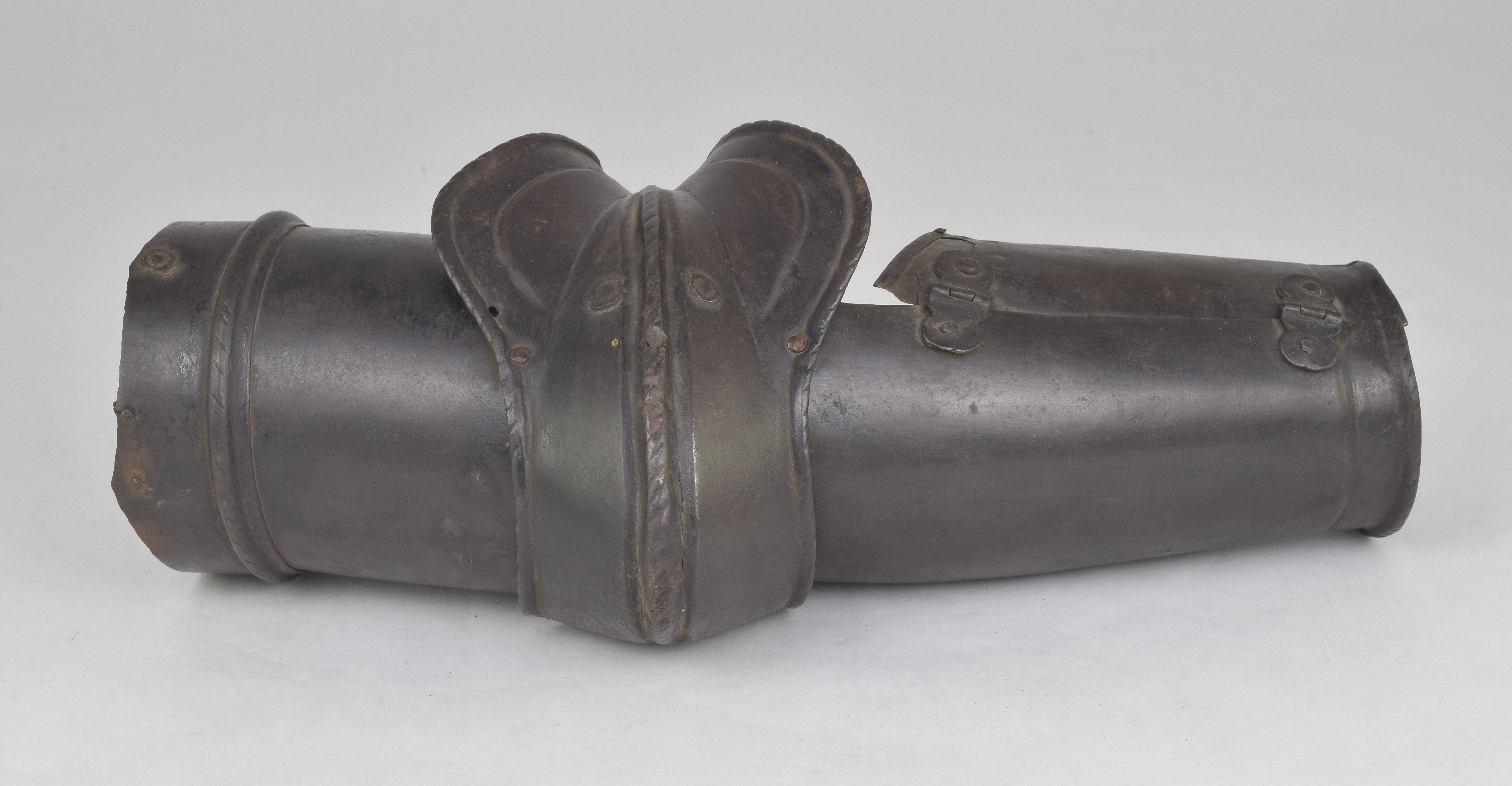

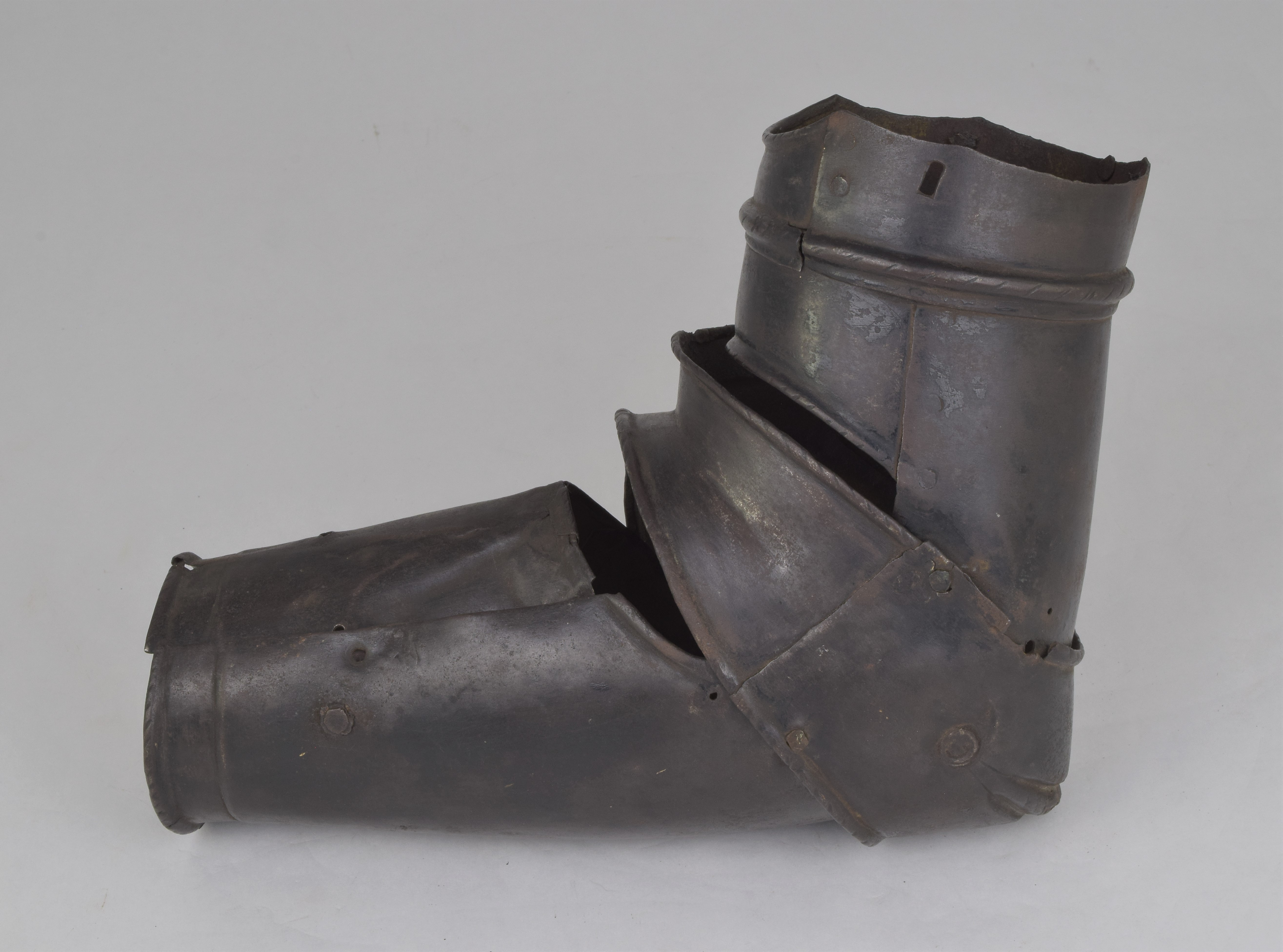

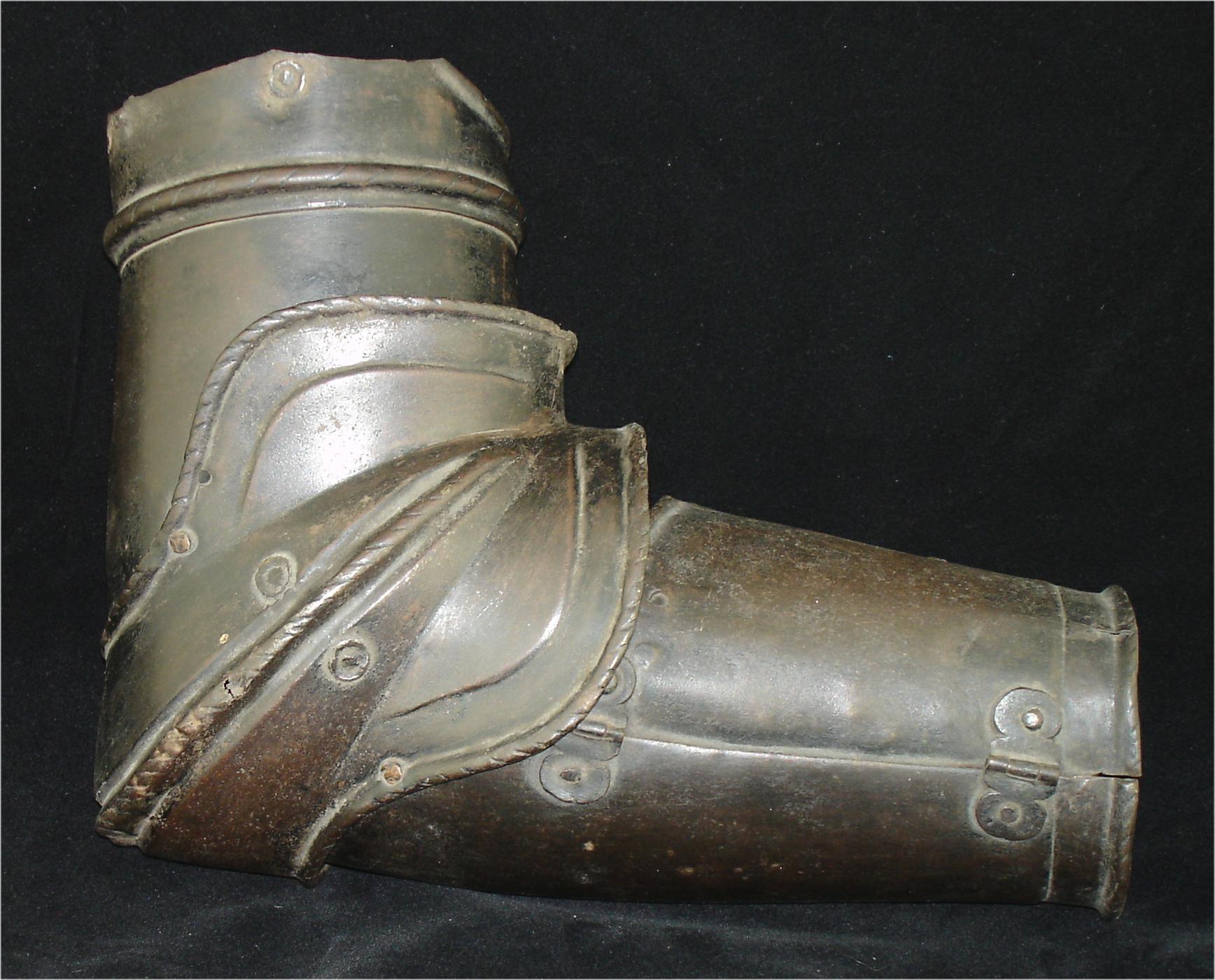

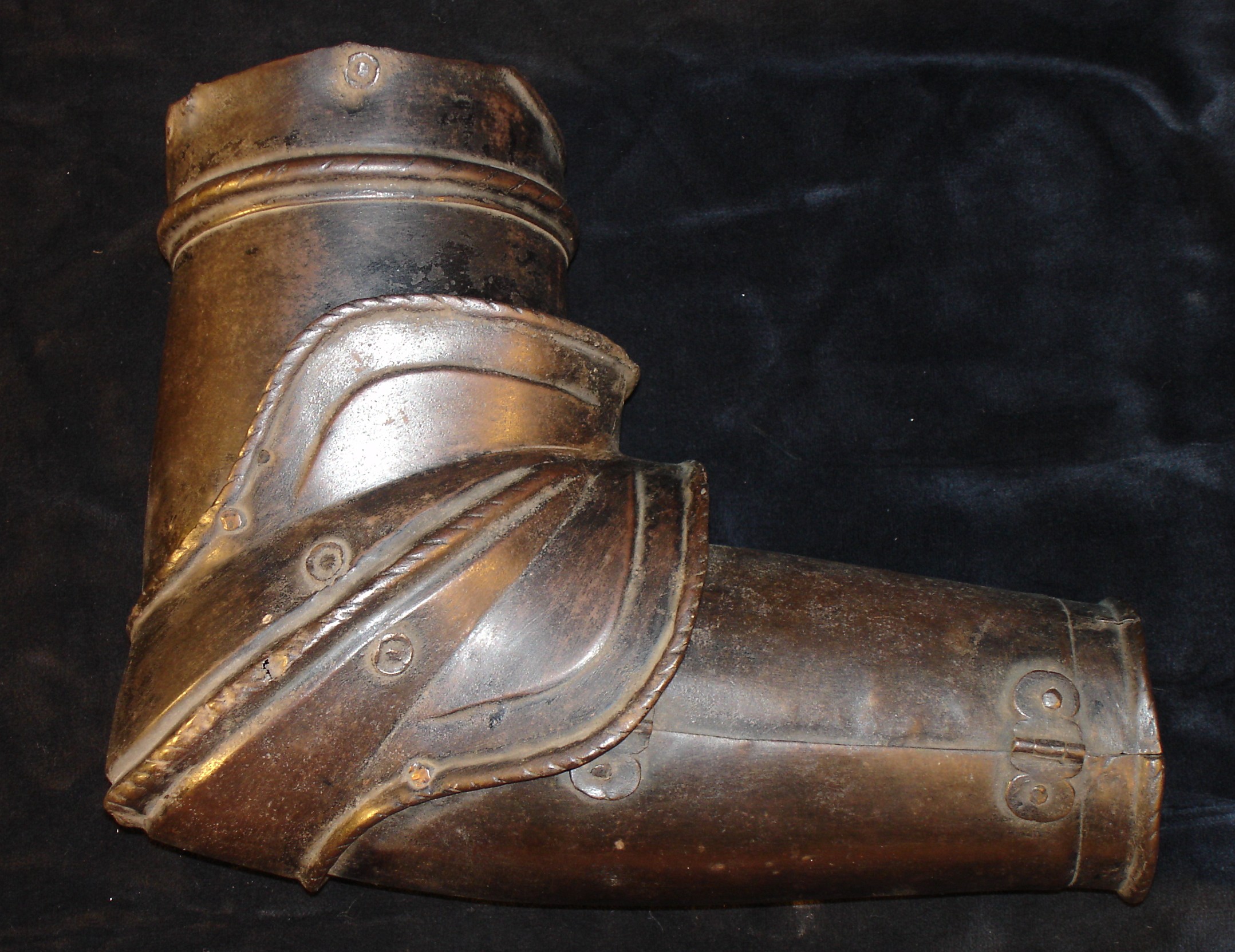

Originally designed as a floating arm defense of a rerebrace, couter and vambrace. It has been crudely joined by copper rivets. Couter of bracelet form. The rear edge of the cop overlaps the end of the wing by app. 1/2 inch they are secured by 2 rivets. The end of the wing is recessed so that the outside of the wing and cop are flush. The cop cop is asymetric, being flatter at he back and rising to a peak at the center from slightly behind the point of the elbow through the wing. The wing is symetric. The outer edges are rolled and roped for their entire length (one small portion missing near the center of fhe back). The roll is bordered by a recessed border on the front portion of the wing. There is a central raised roped band running along most of the raised portion of the cop. There are 2 holes on the front and one at the back for attachment of the cop to the vambrace plates. The cop is app. 3 1/2 inches tall and app. 7 inches from the point of the elbow to the opposite edge of the wing. The wing is 5 1/4 inches high. Rerebrace of simple tubular form with rotating collar remaining. Rolled and roped borders at the inside of the elbow and the inside of the edge of the turning collar. The turning collar has one hole in front, a pair of holes at the outside and a slot at the back for the attachment of the pauldron. The vambrace of 2 plates joined by 2 hinges on the outside. The outer plate dished to conform to the forarm. The upper edge of the inner plate with a rolled and roped border. The wrist edge of both plates with rolled and roped border and recessed band. All borders formed with inward turns. Older patchs to the top of the inner vambrace plate (front corner and middle). Vambrace with holes for a strap and buckle to close the vambrace.Vambrace 8 3/4 inches long at the outside and 5 inches long on the inside. Inner vambrace plate somewhat deformed and with 2 short cracks. Originally from HM Stores (possibly Tower or Woolich Rotunda). Complete with bill of sale from 1926.
